Disk Bad Sector Repair and Removal: A Comprehensive Guide

Introduction

Hard drives are integral to computer systems, responsible for storing vast amounts of data. However, one of the most common issues that can compromise the integrity and performance of a hard drive is the occurrence of bad sectors. Bad sectors are portions of the disk that are damaged and cannot be used to store data. This guide provides an in-depth look at what bad sectors are, how they occur, the methods for detecting them, and techniques for their repair and removal.

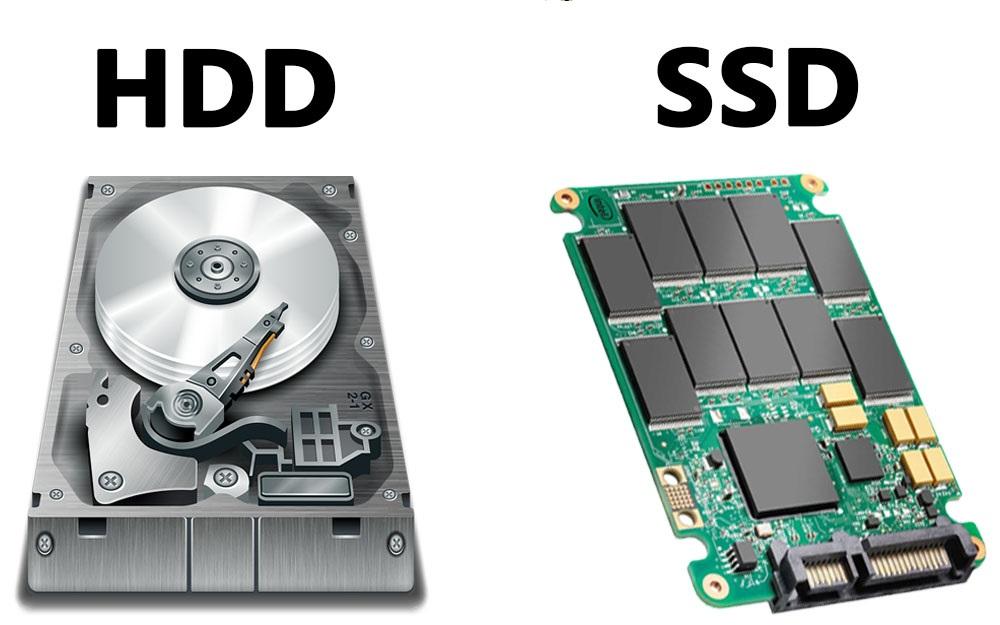

hdd vs ssd

Understanding Bad Sectors

What Are Bad Sectors?

A bad sector is a segment of the disk that is no longer readable or writable. These can occur on both traditional Hard Disk Drives (HDDs) and Solid State Drives (SSDs). There are two primary types of bad sectors:

  1. Physical (Hard) Bad Sectors: These are caused by physical damage to the disk, such as a scratch on the platter of an HDD or a worn-out cell in an SSD. Physical bad sectors are permanent and cannot be repaired.
  2. Logical (Soft) Bad Sectors: These are caused by software errors, such as improper shutdowns, virus infections, or corrupt files. Logical bad sectors do not involve physical damage and can often be repaired by software.

How Do Bad Sectors Occur?

Bad sectors can occur due to several reasons:

  • Wear and Tear: Hard drives have moving parts that can degrade over time. SSDs, although they have no moving parts, also wear out after many read/write cycles.
  • Physical Damage: Dropping a laptop or exposing a hard drive to a magnetic field can cause physical damage, leading to bad sectors.
  • Manufacturing Defects: Occasionally, drives may have defects that go undetected during the manufacturing process.
  • Power Failures: Sudden power loss can interrupt read/write processes, potentially corrupting sectors.
  • Software Errors: Operating system crashes and malware can corrupt data on the drive, leading to logical bad sectors.

Detecting Bad Sectors

Symptoms of Bad Sectors

Detecting bad sectors early is crucial for preventing data loss. Common symptoms of bad sectors include:

  • Frequent system crashes or blue screens
  • Slow file access or system performance
  • Error messages while moving or copying files
  • Files that disappear or become corrupted

Tools for Detecting Bad Sectors

To detect bad sectors, several tools and methods can be employed:

  1. CHKDSK (Check Disk): A built-in Windows utility that scans the disk for errors and bad sectors. It can repair logical bad sectors but not physical ones.
    • To use CHKDSK, open Command Prompt as an administrator and type: chkdsk /f /r. This command checks for both file system errors (/f) and bad sectors (/r).
  2. Third-Party Disk Utilities: Programs like HDDScan, HD Tune, and CrystalDiskInfo can provide a more detailed analysis of disk health and bad sectors.
  3. SMART Monitoring Tools: Self-Monitoring, Analysis, and Reporting Technology (SMART) is built into most modern drives. Tools like CrystalDiskInfo can read SMART data and provide insights into potential drive failures.

Repairing and Removing Bad Sectors

Repairing Logical Bad Sectors

If bad sectors are identified as logical, they can often be repaired with software:

  1. Using CHKDSK: As mentioned earlier, CHKDSK can repair logical bad sectors by marking them as unusable and relocating data.
  2. Disk Utility on macOS: Similar to CHKDSK for Windows, Disk Utility can repair logical bad sectors on macOS.
  3. Linux Commands: On Linux, commands like fsck (File System Consistency Check) can be used to repair bad sectors.

Dealing with Physical Bad Sectors

Physical bad sectors cannot be repaired, but there are ways to work around them:

  1. Data Recovery: First, attempt to recover any data from the affected areas using data recovery software like Recuva or Disk Drill.
  2. Marking Bad Sectors: Tools like CHKDSK or other disk utilities can mark physical bad sectors so that the operating system avoids them in the future.
  3. Drive Cloning: If a drive has many bad sectors, cloning the drive to a new one might be the best option. This involves copying all the data from the old drive to a new one, including any bad sectors.
  4. Replacing the Drive: If bad sectors are widespread or data loss is frequent, replacing the hard drive or SSD is often the most reliable solution.

Preventing Bad Sectors

While it’s impossible to completely eliminate the risk of bad sectors, there are several strategies to minimize their occurrence:

  • Regular Backups: Regularly back up important data to an external drive or cloud storage to protect against data loss.
  • Avoid Physical Impact: Handle drives carefully to avoid physical damage.
  • Use a UPS: An Uninterruptible Power Supply (UPS) can protect against power surges and sudden outages.
  • Keep Your System Clean: Regularly run antivirus and malware scans to prevent software-related bad sectors.
  • Defragment HDDs: Regularly defragmenting your hard drive (for HDDs, not SSDs) can help optimize performance and detect issues early.

1. Introduction to Disk Bad Sectors

Bad sectors are problematic areas on a hard disk drive (HDD) or solid-state drive (SSD) that are unable to reliably store or retrieve data. They can occur due to physical damage, wear and tear, or logical errors. Understanding how bad sectors form and their impact on data storage is crucial for addressing them effectively.

  • Types of Bad Sectors:
    • Physical Bad Sectors: These are caused by actual physical damage to the disk platter or NAND cells in SSDs. Physical damage is often irreversible and can occur due to impact, aging, or manufacturing defects.
    • Logical Bad Sectors: These occur when software issues, improper shutdowns, malware, or corruption cause a sector to become unreadable, even though the physical hardware is intact.

2. How Bad Sectors Affect Storage Media

Both HDDs and SSDs can suffer from bad sectors, but the nature of the problem and the solution strategies differ slightly between these two types of storage.

  • HDDs: In HDDs, physical bad sectors often result from scratches or damage to the magnetic platters. Logical bad sectors might arise due to file system corruption or software glitches.
  • SSDs: SSDs, being based on NAND flash memory, have a limited number of write/erase cycles. Physical bad sectors in SSDs are usually due to cells that can no longer reliably hold data. Logical bad sectors in SSDs are less common but can result from firmware issues or improper data management.

3. Importance of Repairing Bad Sectors

Repairing bad sectors is essential for several reasons:

  • Data Integrity: Bad sectors can lead to data loss if critical files are stored in these areas.
  • System Stability: Frequent crashes and slow performance often result from the system trying to read or write to damaged sectors.
  • Drive Longevity: Addressing bad sectors early can extend the life of a drive by preventing further damage.

4. Overview of Disk Repair and Removal Programs

Disk repair and removal programs are specialized software tools designed to detect, manage, and sometimes repair bad sectors. These programs range from basic utilities bundled with operating systems to advanced third-party solutions offering comprehensive diagnostics and repair capabilities.

Popular Disk Repair and Removal Programs

5. CHKDSK (Check Disk)

  • Overview: CHKDSK is a command-line utility built into Windows operating systems. It scans the file system and checks for errors, including bad sectors. For logical bad sectors, CHKDSK attempts to repair the file system and recover readable data.
  • Usage:
    • To run CHKDSK, open the Command Prompt as an administrator and type chkdsk /f /r followed by the drive letter. The /f parameter fixes errors, while /r locates bad sectors and recovers readable information.
  • Limitations: While effective for logical bad sectors, CHKDSK cannot repair physical damage. It marks bad sectors so that they are no longer used, but the data in those sectors may be lost.

6. HDD Regenerator

  • Overview: HDD Regenerator is a third-party disk repair tool known for its ability to detect and repair physical bad sectors on hard drives. Unlike other utilities that focus solely on logical bad sectors, HDD Regenerator can sometimes repair physical damage using magnetic reversal techniques.
  • Features:
    • Physical Sector Repair: Attempts to repair physical bad sectors through magnetic reversal.
    • Real-time Monitoring: Monitors disk health and provides real-time statistics on sector conditions.
  • Usage: The program is user-friendly, with a straightforward interface. Users can run a scan and repair from within the Windows environment or create a bootable USB to repair drives outside of the OS.
  • Limitations: HDD Regenerator is not always successful in repairing all physical bad sectors. Its effectiveness may diminish on severely damaged drives.

7. SpinRite

  • Overview: SpinRite, developed by Gibson Research Corporation, is a powerful tool designed to recover data and repair bad sectors on magnetic storage devices. It operates at the hardware level, making it effective for both logical and some physical bad sectors.
  • Features:
    • Data Recovery: Recovers data from damaged sectors before attempting repairs.
    • Preventive Maintenance: Regular use can help detect potential failures before they become critical.
  • Usage: SpinRite runs directly from a bootable disk or USB drive, allowing it to operate independently of the operating system. This makes it particularly useful for systems that cannot boot due to drive errors.
  • Limitations: SpinRite is designed primarily for HDDs and is less effective with SSDs due to the differences in how these devices manage data storage and errors.

8. Victoria

  • Overview: Victoria is a free, comprehensive HDD/SSD diagnostic and repair tool. It provides in-depth information about drive health and performance, making it a popular choice among tech professionals.
  • Features:
    • SMART Analysis: Reads and interprets SMART data to predict potential drive failures.
    • Advanced Diagnostics: Offers a variety of tests, including read, write, and erase tests to identify bad sectors.
  • Usage: Victoria is available for Windows and DOS, allowing users to run diagnostics and repair operations either within the OS or in a pre-boot environment.
  • Limitations: The interface can be complex for novice users. Additionally, while it can identify and attempt to repair bad sectors, its effectiveness is limited on drives with severe physical damage.

9. Disk Utility (macOS)

  • Overview: Disk Utility is the built-in disk management tool for macOS. It includes a feature called First Aid that checks for and repairs disk errors, including bad sectors.
  • Features:
    • First Aid: Repairs file system errors and checks for bad sectors.
    • Partition Management: Allows users to manage partitions and disk space effectively.
  • Usage: Accessible from the Applications > Utilities folder, Disk Utility provides a graphical interface that makes disk maintenance straightforward.
  • Limitations: Disk Utility’s repair capabilities are limited to logical bad sectors. It does not offer advanced diagnostics or repair for physical damage.

10. HDAT2

  • Overview: HDAT2 is a DOS-based tool used for testing and repairing bad sectors on hard drives and SSDs. It supports a wide range of drive interfaces and offers low-level diagnostics.
  • Features:
    • Comprehensive Testing: Performs read/write tests to identify and repair bad sectors.
    • ATA/SATA Support: Works with most ATA/IDE/SATA drives, making it versatile for older and newer hardware.
  • Usage: HDAT2 is run from a bootable DOS environment, allowing it to bypass the operating system and work directly with the hardware.
  • Limitations: The DOS-based interface can be intimidating for users unfamiliar with command-line operations. It also requires a DOS boot disk, which can be inconvenient for some users.

11. DiskGenius

  • Overview: DiskGenius is a versatile disk management tool that offers partition management, data recovery, and disk repair features. It includes a utility for checking and repairing bad sectors on HDDs and SSDs.
  • Features:
    • Bad Sector Repair: Identifies and attempts to repair bad sectors.
    • Data Recovery: Provides options for recovering lost or deleted data from damaged drives.
  • Usage: DiskGenius has a user-friendly interface with a variety of tools accessible from a single window. Users can scan for bad sectors and attempt repairs with a few clicks.
  • Limitations: DiskGenius’s bad sector repair capabilities are mostly effective for logical errors. Physical damage requires more specialized tools.

12. GSmartControl

  • Overview: GSmartControl is a graphical user interface for smartmontools, a set of utilities for monitoring and analyzing SMART data on hard drives. It helps predict potential drive failures before they occur.
  • Features:
    • SMART Monitoring: Provides detailed SMART data to assess drive health.
    • Extended Tests: Allows users to run short and extended tests to detect bad sectors.
  • Usage: Available for Windows, macOS, and Linux, GSmartControl is versatile and can be used across multiple platforms.
  • Limitations: GSmartControl focuses on monitoring rather than repairing. While it can help detect issues early, it does not offer direct bad sector repair capabilities.

Detailed Analysis of Disk Repair Programs

13. Deep Dive into HDD Regenerator

HDD Regenerator’s unique approach to physical bad sector repair sets it apart from other tools. It uses a special algorithm to detect magnetic degradation in the disk surface and attempts to regenerate it. This process involves reversing the magnetic polarity of the affected area, essentially re-aligning the disk’s magnetic particles to restore functionality.

  • How It Works: HDD Regenerator operates by scanning the drive at a low level, bypassing the file system. It then attempts to repair the magnetic structure of bad sectors. If successful, the sector is marked as usable again, and data is recovered.
  • Success Rate: The success of HDD Regenerator depends on the extent of physical damage. It is most effective on minor surface issues but may not work on heavily scratched or mechanically damaged platters.
  • User Feedback: Many users report positive results with HDD Regenerator, especially for drives with minor physical issues. However, its effectiveness decreases as damage severity increases.

14. SpinRite’s Approach to Data Recovery and Sector Repair

SpinRite is renowned for its data recovery capabilities. It operates at the hardware level, directly interfacing with the drive controller to perform thorough sector analysis and recovery.

  • Recovery Process: SpinRite reads each sector multiple times, using different algorithms to extract as much data as possible from damaged areas. It then re-writes the data to fresh sectors, effectively bypassing bad ones.
  • Preventive Maintenance: SpinRite’s ability to recondition drives by refreshing magnetic media makes it a valuable tool for maintaining older HDDs. Regular use can help detect and resolve minor errors before they escalate.
  • SSD Compatibility: While SpinRite can work with SSDs, its effectiveness is limited due to the nature of flash memory and its wear-leveling algorithms. SSDs handle errors differently, often masking bad sectors with spare cells.

15. Victoria’s Advanced Diagnostic Tools

Victoria is a powerful diagnostic tool for both professional and casual users. It provides detailed information about drive health and performance, making it a go-to choice for in-depth disk analysis.

  • SMART Analysis: Victoria’s ability to read and interpret SMART data allows users to understand potential failure points. It can also trigger self-tests to verify the drive’s integrity.
  • Sector-Level Testing: Victoria’s sector-level read, write, and erase tests offer a comprehensive approach to identifying bad sectors. Users can choose from a variety of test patterns to thoroughly examine disk surfaces.
  • Usage Scenarios: Victoria is particularly useful in environments where detailed diagnostics are needed, such as data recovery centers or IT departments. Its ability to work with both HDDs and SSDs adds to its versatility.

16. Disk Utility’s Role in macOS Maintenance

Disk Utility is a core component of macOS, offering essential disk management features. Its First Aid function is designed to check and repair file system errors, including logical bad sectors.

  • File System Integrity: First Aid focuses on maintaining file system integrity, ensuring that files are correctly organized and accessible. It repairs directory structures and verifies file permissions.
  • Bad Sector Handling: While Disk Utility does not repair physical bad sectors, it can detect and mark them as unusable, preventing the system from storing data in these areas.
  • Ease of Use: Disk Utility’s graphical interface makes it accessible for all macOS users. Its integration with macOS ensures compatibility and reliability for managing Apple file systems.

17. HDAT2’s Low-Level Disk Repair Capabilities

HDAT2 is a versatile tool that works directly with disk hardware, providing a low-level interface for testing and repairing bad sectors. It is particularly useful for older systems and drives that may not be supported by modern utilities.

  • Direct Hardware Access: HDAT2 operates in a DOS environment, allowing it to interact directly with the drive controller. This bypasses the operating system, making it effective for systems that cannot boot.
  • Comprehensive Testing: HDAT2’s read/write tests are designed to identify and repair bad sectors by re-writing data patterns. This can help recover data from sectors with minor corruption.
  • User Base: HDAT2 is favored by IT professionals and data recovery experts who need a reliable tool for older drives and systems. Its versatility across various interfaces makes it a valuable addition to any toolkit.

Preventive Measures and Best Practices

18. Regular Maintenance and Monitoring

Regular maintenance and monitoring are key to preventing bad sectors and ensuring data integrity. By using SMART monitoring tools and performing routine scans, users can detect potential issues early and take corrective action.

  • SMART Monitoring: Tools like CrystalDiskInfo and GSmartControl provide real-time monitoring of drive health. They can alert users to potential failures before they become critical.
  • Routine Scans: Running tools like CHKDSK or Disk Utility on a regular basis helps maintain file system integrity and detect bad sectors early.
  • Data Backup: Regular backups are essential for protecting data against hardware failures. Using cloud storage or external drives can help safeguard important files.

19. Handling Bad Sectors on SSDs

While SSDs are less prone to bad sectors due to their lack of moving parts, they are not immune to errors. Understanding how SSDs manage bad sectors and taking preventive measures can help extend their lifespan.

  • Wear Leveling: SSDs use wear leveling algorithms to distribute write and erase cycles evenly across cells. This helps prevent specific cells from wearing out prematurely.
  • TRIM Command: Enabling TRIM on SSDs allows the operating system to inform the SSD which blocks of data are no longer in use, allowing the drive to manage its storage more efficiently.
  • Firmware Updates: Keeping SSD firmware up to date can help improve performance and reliability. Manufacturers often release updates to address bugs and improve wear leveling algorithms.

20. Future Trends in Disk Repair and Management

As storage technology evolves, new tools and techniques for managing disk health will emerge. Understanding these trends can help users stay ahead of potential issues and maintain optimal performance.

  • AI-Based Diagnostics: Artificial intelligence and machine learning algorithms are being developed to predict drive failures more accurately. These tools can analyze patterns in SMART data to identify potential issues before they become critical.
  • Improved SSD Management: As SSDs become more prevalent, new tools are being developed to manage their unique characteristics. These tools focus on optimizing wear leveling, managing bad sectors, and improving data recovery.
  • Cloud-Based Solutions: Cloud-based storage solutions offer new ways to manage and protect data. By leveraging cloud resources, users can offload storage and processing tasks, reducing the risk of data loss due to hardware failures.

This comprehensive guide should provide an in-depth overview of disk bad sector repair and removal programs, helping users choose the right tools and techniques for their need

Bad sectors can pose a significant risk to data integrity and system performance. Understanding how they occur, detecting them early, and knowing the appropriate repair and prevention methods can greatly extend the lifespan of your hard drives and safeguard your data. Whether you’re dealing with logical or physical bad sectors, taking proactive steps can save you time, money, and a lot of frustration.

Bad sectors are a significant concern for both HDDs and SSDs, affecting data integrity and system stability. Understanding the different types of bad sectors and the tools available for diagnosing and repairing them is essential for maintaining drive health and preventing data loss. By staying informed about the latest disk repair and management programs, users can ensure their storage devices remain in optimal condition, safeguarding their data for years to come.
